Ev > Ürünler > Ahşap pelet üretim hattı >

10TPH Biomass Pellet Production Line Eucalyptus Pine Birch Wood Chip Pellet Machine

10TPH Biomass Pellet Production Line

Biomass Pellet Production Line Eucalyptus

Birch Wood Chip Pellet Machine

Menşe yeri:

Çin

Marka adı:

Zhongdebao

Sertifika:

CE BV

Model numarası:

PL-1-10TPH

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Başvuru:

Cips, Bisküvi, Aperatif, Puf Aperatif/Mısır Aperatif/Ekstrüzyon Aperatif İşlem Hattı, Kızartma Apera

Satış Sonrası Hizmet Verilir:

Yurtdışında hizmet verecek mühendisler, Saha kurulumu, devreye alma ve eğitim, Yurtdışı servis merke

Gerilim:

380V/50HZ, 380v, 50hz, 380V/50HZ/Üç Faz, 220V/50HZ/Tek Faz veya Gerektiğinde Değiştirin

Güç(w):

45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw

Garanti:

1 Yıl, bir yıl, 12 AY

Ağırlık:

500kg, 6000kg, 1200kg, 2-10TON, 2000

Boyut(L*W*H):

30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, Kapasiteye göre

Durum:

Yeni

Kapasite:

1000kg/h ila 10ton/h

Malzeme:

Karbon çeliği alaşımlı çelik

Motor:

Simens, Çin motoru veya Simense

Ürün adı:

biyokütle odun pelet üretim hattı

Renk:

mavi beyaz yeşil herhangi bir renk özelleştirilebilir

Tip:

biyokütle ahşap pelet üretim hattı

Hammadde:

wood chips Eucalyptus pine birch poplar Rice husks, peanut husks, melon seed husks, bamboo shavin

ana motor:

22kw 30kw 37kw 55kw

Çıktı:

300kg/saat 500kg/saat 800kg/saat 1000kg/saat 1,5ton/saat 1,8-2ton/saat 2,5-3ton/saat

Yıl:

2023

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1

Fiyat

price negotiable

Ambalaj bilgileri

Tahta sandık paketi ve doğrudan konteynere yüklenir

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, T/T, Western Union

Yetenek temini

Ayda 100 set

İLGİLİ ÜRÜNLER

Video

Yeni Geliş 1000-5000kg/h Ahşap Pellet Yapma Makinesi Yüksek Verimlilik Set Ahşap değirmen Üretim hattı

En İyi Fiyatı Alın

Video

Commercial Automatic wood pellet production line for fuel sale

En İyi Fiyatı Alın

Video

1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE

En İyi Fiyatı Alın

Video

Isıtma için Komple 1 ~ 5T / H Biyokütle Talaş Ahşap Pelet Üretim Hattı

En İyi Fiyatı Alın

Bize Ulaşın

86-371-86546711

Şimdi İletişime Geçin

Ürün Açıklaması

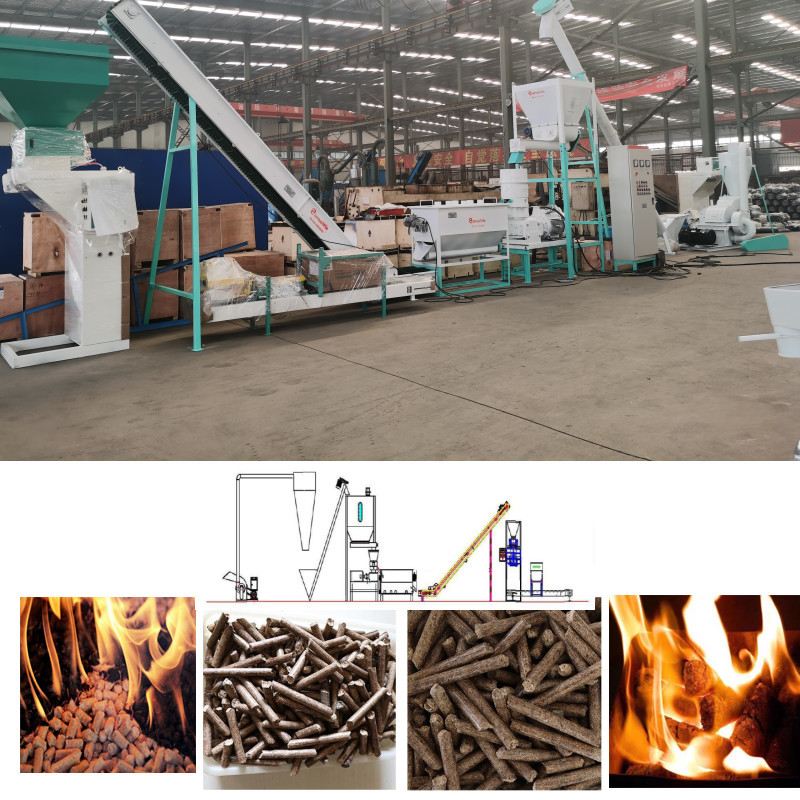

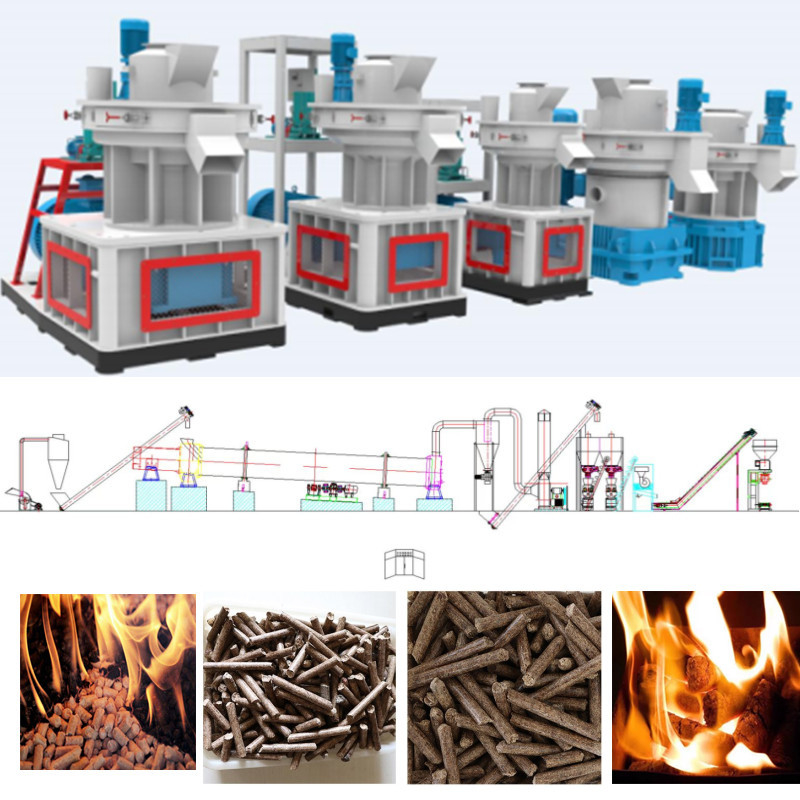

1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line

(Chipping---Grinding---Drying---Pelleting---Cooling&Screening---Packing process).

The wood pellet line machines can make a variety of biomass raw materials into pellets. Its diameter is generally 6/8/10/12mm, and its water content is 10-15%. Biomass pellets have a wide range of sources, and common raw materials are:

raw mateiral : wood logs , sawdust planks , straws , other biomass wastes Etc.

Forestry Waste: such as waste wood, waste branches, sawdust, etc.
Agricultural Waste: such as crop straws, rice husks, peanut husks, bagasse, palm kernel husks, etc.
Construction Waste: such as waste paper, wooden frames, wooden templates, etc.

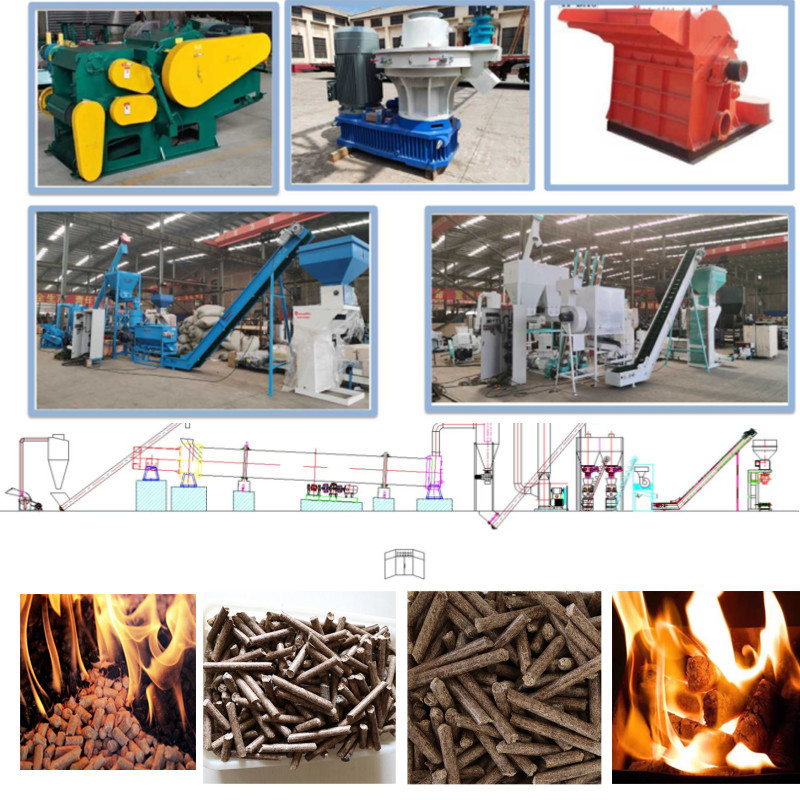

Main machines used : Wood pellet mills , Drum type wood chipper , Hammer mill , Rotatry drum type drying machine, counterlflow cooler , Automatic packing system .

Application of Biomass pellets :

Biomass pellets are made by recycling waste and are a new type of environmentally friendly fuel , widely used in residential heating equipment , power plants , boiler plants . etc. It has the characteristics of large heat generation , low ash content , low enviromental pollution, and recyclablility .

Commly used in Fireplace , biomass power plant , boiler fuel , Household biomass stove .

The advantages of Zhongdebao wood granulator machine's ring die ?

The ring die is the core coponent of the pellet machine ,and the quality of the ring die affects the life of the pellet machine .

The ring die of the Zhongdebao biomass pellet machine is made of 42CrMo , which is more wear-resistant and durable than ordineary alloy steel or carbon steel ring die .

The special surface carburizing treatment increases the surface hardness of the ring die and significantly improves the service life .

Compressed step release hole is adopted to ensure that the material enters teh die hole smoothly .

The high hole opening rate of ring die to ensure the continuous high output of the plellet machine .

Model

VR450

VR560

VR600

VR600A

VR700A

Power(kw)

55+0.37

90+1.5+0.37

110+2.2+0.37+0.65

132+2.2+0.37+0.65

160+2.2+0.37+0.65

Voltage

380v/220v 50hz 60hz customized

Rotation speed

1450r/min

Pellet size

4-12mm

Pelletize temperature

40-80 ℃

raw material moisture

15-25%

Weight

2.9T

5.6T

6.5T

7T

8T

Size

2160*1000*1850

2300*1250*2000

3100*1300*2100

2200*1200*1750

2460*1400*2000

Ring die inner diameter

450

560

600

600

700

Capacity

0.8-1T/H

1.2-1.5T/H

1.8-2T/H

2-2.5T/H

2.5-3T/H

For the pellet mold/die the diameter generally will be 6mm or 8mm .

The finished sample pellet for your reference :

Etiketler：

800kg/saat Ahşap Pelet Üretim Hattı

Düz Kalıp Biyokütle Üretim Hattı

Biyokütle Isıtma Pelet Makinesi

Sorgunuzu doğrudan bize gönderin

Model	VR450	VR560	VR600	VR600A	VR700A
Power(kw)	55+0.37	90+1.5+0.37	110+2.2+0.37+0.65	132+2.2+0.37+0.65	160+2.2+0.37+0.65
Voltage	380v/220v 50hz 60hz customized
Rotation speed	1450r/min
Pellet size	4-12mm
Pelletize temperature	40-80 ℃
raw material moisture	15-25%
Weight	2.9T	5.6T	6.5T	7T	8T
Size	216010001850	230012502000	310013002100	220012001750	246014002000
Ring die inner diameter	450	560	600	600	700
Capacity	0.8-1T/H	1.2-1.5T/H	1.8-2T/H	2-2.5T/H	2.5-3T/H
