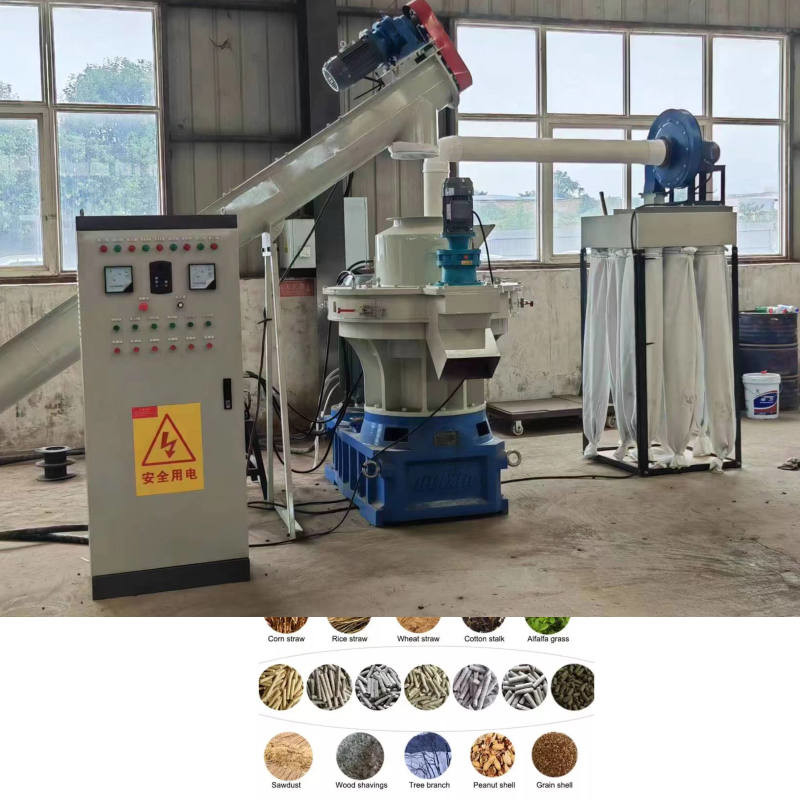

Energy-Saving 6-12mm Wood Pellet Production Line with Heavy-Duty Reducer
Directly burning straw can generate a large amount of smoke and carbon monoxide, polluting the air. After being processed into straw particles using a biomass pellet machine, straw becomes an environmentally friendly fuel with high density, high calorific value, smokeless combustion, and no harmful gas emissions. Therefore, biomass particles are clean energy. The price is only half that of coal, and the burnt ash can still be used as fertilizer, which brings all the advantages together.
First, break the waste wood into small pieces, then use a wood crusher to crush it into 3-6mm powder, and then use a conveyor belt to enter the dryer to dry it to about 15% moisture
No adhesive is required. The raw materials for processing the pellet machine need to be crushed into 3-6mm sawdust, with a moisture content controlled within 20%. Moreover, the coarse fibers themselves have a certain degree of adhesion. It can be seen that these sawdust are all small particles with high density and high hardness that are squeezed out by the biomass pellet machine.
The three major advantages of the eighth generation particle machine are:
1. It has a larger output and a particle forming rate of about 99%, which is much higher than ordinary particle machines.
2; Energy saving, heavy-duty integrated hard tooth reducer, low power consumption, high torque, and high performance.
3. Durable, automatic lubricating oil supply device, capable of continuous production 24 hours a day.
The biomass granulator is suitable for a wide range of raw materials. There are mainly two categories: wood branches, miscellaneous wood bark, construction waste wood, furniture factory scraps, etc. 2. It is a type of crop straw, peanut husk, rice husk, etc. that has been pre processed and processed into 8mm 3500-4500 kcal. It has the advantages of small size, combustion resistance, and convenient transportation, and can replace coal as the main fuel for boilers. It can also be used in fields such as domestic stoves, hot water boilers, and industrial boilers.
(Chipping---Grinding---Drying---Pelleting---Cooling&Sifting---Packing process).
On the market, there are two types wood pellet machine,flat die and ring die(horiztonal type and vertical ring die pellet
machine)Wood pellets machine also called wood pellet making machine,pellet press machine, is a biomass equipment which is used to press small size wood into 6/8mm wood pellets. Our wood pellets machine belongs to the 8th Vertical ring die.Double layer, both side can be used, enhanced the lifetime of spare parts and reduce cost.
The main advantages of the vertical ring die pellet machine :
1. Feeding vertically and directly to pelletizing room .
2. Die static , rollers rotating , materials centrifugal , evenly distributed around .
3. Double-layer dies , up and down dual use , high capacity and energy saving .
4. Ring die , vertical structure , conducive to the pelletizing room cooling .
5. Independent output device , ensure formation rate of pellets .
6. Independent lubrication system , bring precise and automatic lubrication to bearings .
7. Feeding system is equipped with inverter which can bring stepless adjustable feeding speed .
Our ring die pellet machine have below models :
|
Model
|
|
|
|
|
|
|
Power(kw)
|
55+0.37
|
90+1.5+0.37
|
110+2.2+0.37+0.65
|
132+2.2+0.37+0.65
|
160+2.2+0.37+0.65
|
|
Voltage
|
380v/220v 50hz 60hz customized
|
|
Rotation speed
|
1450r/min
|
|
Pellet size
|
4-12mm
|
|
Pelletize temperature
|
40-80 ℃
|
|
raw material moisture
|
|
|
Weight
|
2.9T
|
|
|
|
|
|
Size
|
2160*1000*1850
|
2300*1250*2000
|
3100*1300*2100
|
2200*1200*1750
|
2460*1400*2000
|
|
Ring die inner diameter
|
450
|
560
|
600
|
600
|
700
|
|
Capacity
|
0.8-1T/H
|
1.2-1.5T/H
|
1.8-2T/H
|
2-2.5T/H
|
2.5-3T/H
|
For the pellet mold/die the diameter generally will be 6mm or 8mm .
The finished sample pellet for your reference :
